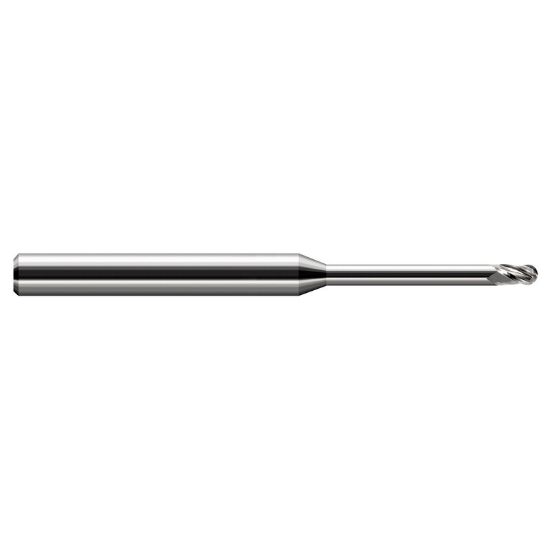

HARVEY Tool 966055 DIA 0.055 LOC 0.0820 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR966055
Delivery date: 3-5 days
$48.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling, Side Milling
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.0550 1.40MM - #54
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard / With Neck
Neck Length 0.5600 14.22MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.055 x 0.125 x 0.082 x 2.500
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Single/Double End Single End
Flutes/Inserts 3
Length Of Cut 0.0820 2.08MM
End Of Tool Shape Ball Nose
Taper Flute No
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
