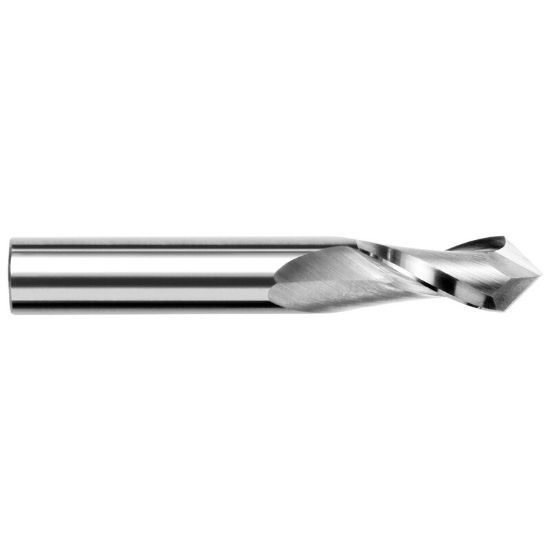

HARVEY Tool 949432 DIA 1/2 LOC 1.00 OAL 3.00Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR949432
Delivery date: 3-5 days
$108.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Drilling, Multi Funcion Tools
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Dimensional Specifications
Overall Len 3.0000 76.20MM
Taper Flute No
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Flutes/Inserts 2
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Drill Point
Cutter Style Drill/Mill
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
