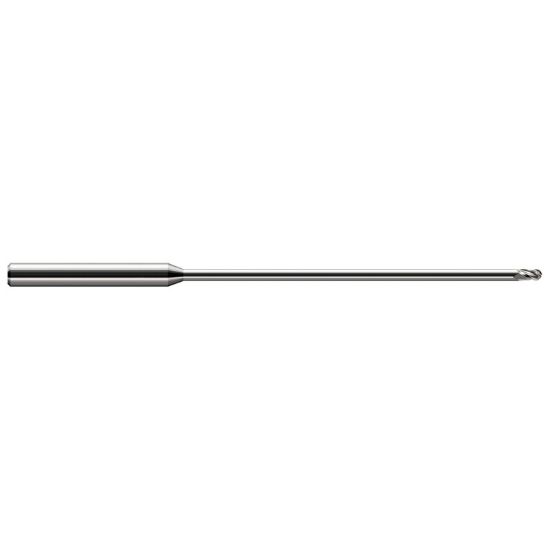

HARVEY Tool 922731 DIA 0.031 LOC 0.0460 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR922731
Delivery date: 3-5 days
$97.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.031 x 0.125 x 0.046 x 2.500
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Length Of Cut 0.0460 1.17MM
Taper Flute No
Single/Double End Single End
Cutter Dia 0.0310 0.79MM - #68
Neck Length 0.9370 23.80MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
