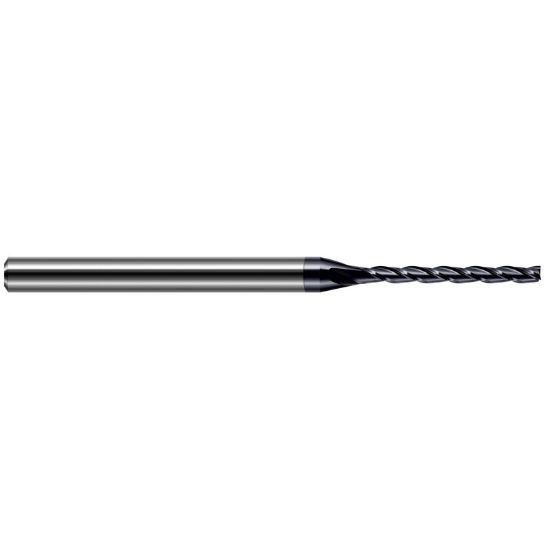

Harvey Tool 837862-C3 .062 Dia Carbide9x Long Flute EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Part Number: HAR837862-C3 0.062 x 0.125 x 0.562 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$57.80
SKU: 1288805

Description

HARVEY Tool End Mill Carbide AlTiN Square Sharp 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Length Of Cut 0.5620 14.27MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0620 1.57MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
