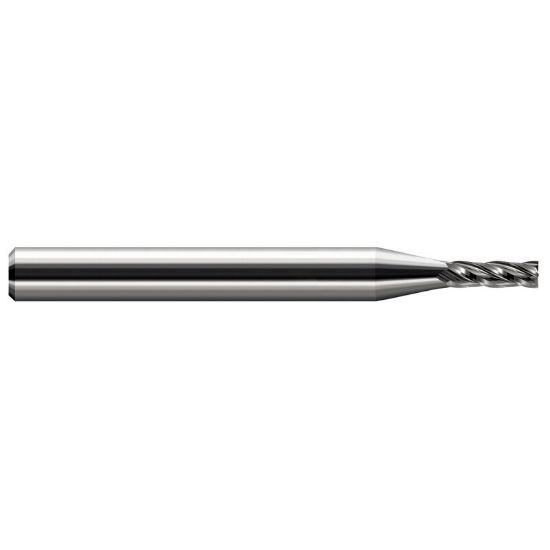

HARVEY Tool 836312 DIA 0.30MM LOC 0.0360 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR836312
Delivery date: 3-5 days
$28.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Description 0.012 x 0.125 x 0.036 x 1.500
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Type Standard
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.0120 0.30MM - #83
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.0360 0.91MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Single End
Taper Flute No
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
