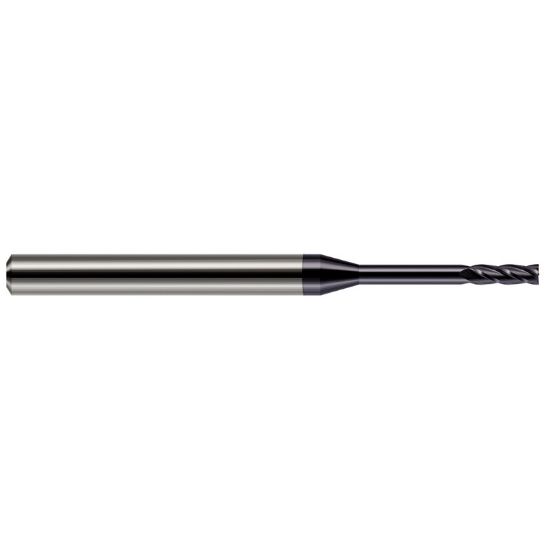

Harvey Tool 76440-C3 .040 Dia CarbideLG RCH EM-4 FL AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Part Number: HAR76440-C3 0.040 x 0.125 x 0.120 x 1.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$61.90
SKU: 1288692

Description

HARVEY Tool End Mill Carbide AlTiN Square Sharp 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.0400 1.02MM - #60
Length Of Cut 0.1200 3.05MM
Neck Length 0.3600 9.14MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
