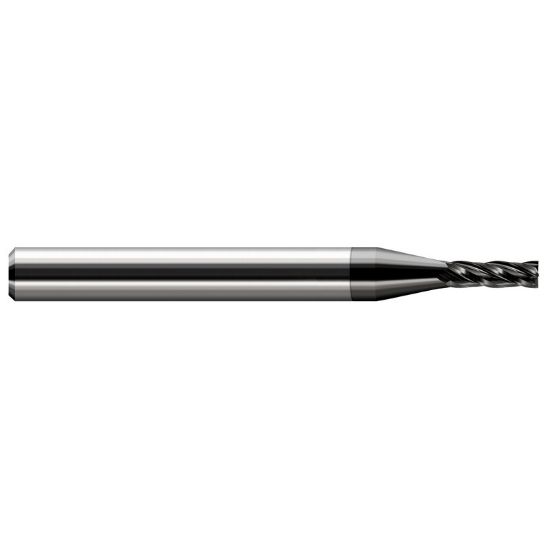

Picture of Harvey Tool 73019-C4 .019 Dia Carbide SQ EM -4 FL, Diamond End Mill Standard Helix Carbide Diamond Single End Square Sharp

Harvey Tool 73019-C4 .019 Dia Carbide SQ EM -4 FL, Diamond End Mill Standard Helix Carbide Diamond Single End Square Sharp

Part Number: HAR73019-C4 0.019 x 0.125 x 0.057 x 1.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$54.70
SKU: 1288290

Description

HARVEY Tool End Mill Carbide Diamond Square Sharp 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Length Of Cut 0.0570 1.45MM
Flutes/Inserts 4
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0190 0.48MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating Diamond
Tool Material Carbide
