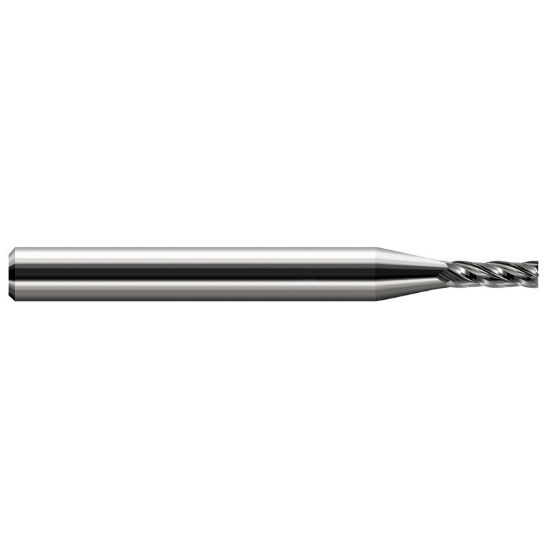

HARVEY Tool 72041 DIA 1.04MM LOC 0.1230 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR72041
Delivery date: 3-5 days
$19.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Dimensional Specifications
Overall Len 1.5000 38.10MM
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Dimension Description 0.041 x 0.125 x 0.123 x 1.500
Taper Flute No
Cutter Dia 0.0410 1.04MM - #59
Flutes/Inserts 2
Length Of Cut 0.1230 3.12MM
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
