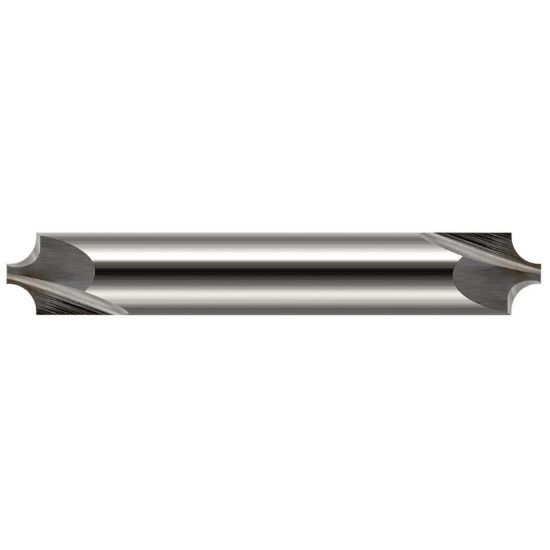

HARVEY Tool 67405 .005 R x .008 P FLRD CREM, DE, 2 FL Corner Rounder Carbide Uncoated Double End Corner Rounder 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR67405
Delivery date: 3-5 days
$58.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Corner RoundIng
Package Size 1
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.1250 3.18MM - 1/8
Cutter Style Carbide Corner Rounder
Single/Double End Double End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Corner Radius 0.0050 0.13MM
End Of Tool Shape Corner Rounder
Length Type Standard
Flutes/Inserts 2
Taper Flute No
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
