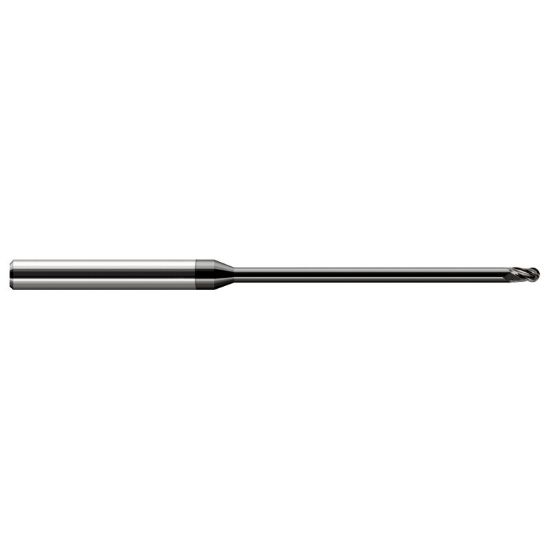

Picture of Harvey Tool 59447-C4 .047 Dia Ball STB FL 20x RCH EM, DMD End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall

Harvey Tool 59447-C4 .047 Dia Ball STB FL 20x RCH EM, DMD End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall

Part Number: HAR59447-C4 0.047 x 0.125 x 0.070 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1288015
Vendor: Sussex Tool and Supply
$77.70

Description

HARVEY TOOL Standard Helix End Mill Carbide Diamond Ball Nose Ball Standard Flute Flutes 3 Single End HARVEY Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0470 1.19MM
Length Of Cut 0.0700 1.78MM
Neck Length 0.9500 24.13MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Diamond
