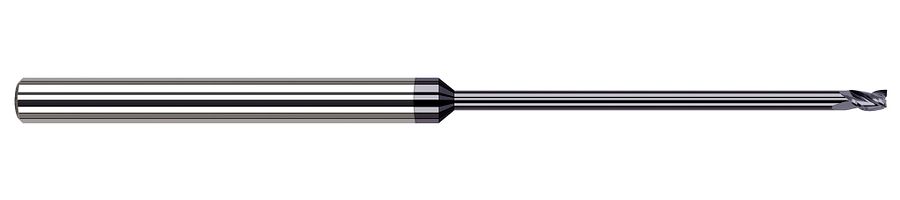

Picture of Harvey Tool 58340-C3 .040 Dia Carbide Stb FL 20x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Harvey Tool 58340-C3 .040 Dia Carbide Stb FL 20x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Part Number: HAR58340-C3 0.040 x 0.125 x 0.060 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.40
SKU: 1287996

Description

HARVEY Tool End Mill Carbide AlTiN Square Sharp 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0400 1.02MM - #60
Length Of Cut 0.0600 1.52MM
Neck Length 0.8000 20.32MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
