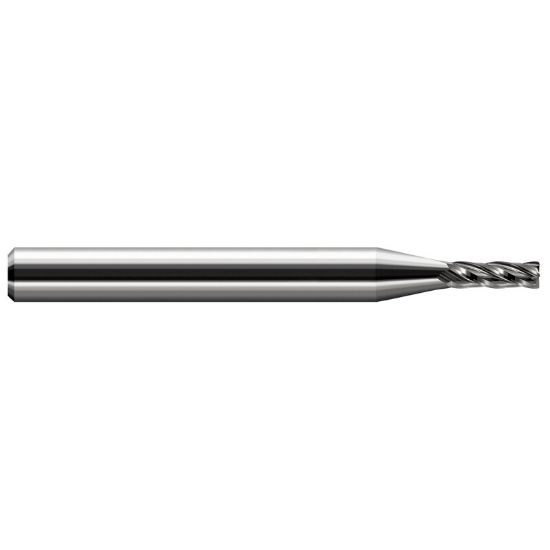

HARVEY Tool 51699 .100 D x .020 R CRAD EM, 4 FL Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR51699
Delivery date: 3-5 days
$25.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Corner RoundIng
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
End Of Tool Shape Corner Rounder
Length Type Standard
Corner Radius 0.0050 0.13MM
Flutes/Inserts 4
Single/Double End Single End
Cutter Style Corner Rounder Back Side
Cutter Dia 0.1000 2.54MM
Taper Flute No
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
