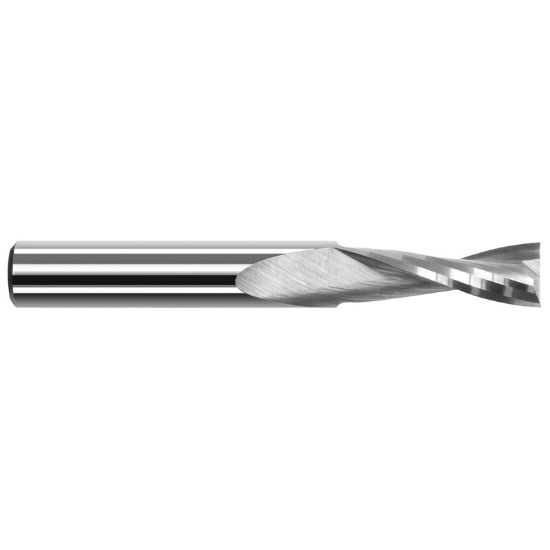

HARVEY Tool 49810 DIA 0.25MM LOC 0.0500 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR49810
Delivery date: 3-5 days
$74.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Shipping State Massachusetts
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Dimension Description 0.010 x 0.125 x 0.050 x 1.500
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Length Of Cut 0.0500 1.27MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Flutes/Inserts 2
Single/Double End Single End
Machine Side Connection Type Cylindrical
Taper Flute No
Cutter Dia 0.0100 0.25MM - #87
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
