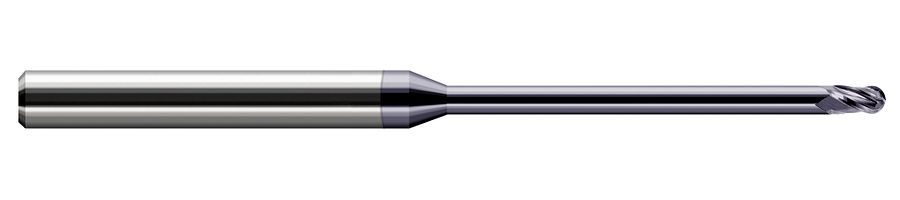

Picture of Harvey Tool 49312-C3 .187 Ball Carbide Stb FL 15x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 49312-C3 .187 Ball Carbide Stb FL 15x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR49312-C3 0.187 x 0.188 x 0.281 x 4.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.90
SKU: 1287886

Description

HARVEY Tool End Mill Carbide AlTiN Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1870 4.75MM
Length Of Cut 0.2813 7.15MM
Neck Length 2.8120 71.42MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
