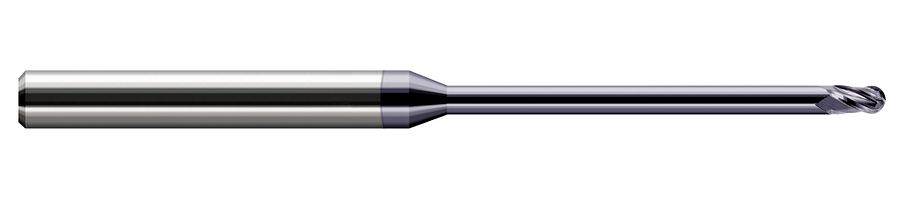

Picture of Harvey Tool 49310-C3 .156 Ball Carbide Stb FL 15x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 49310-C3 .156 Ball Carbide Stb FL 15x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR49310-C3 0.156 x 0.188 x 0.234 x 4.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.30
SKU: 1287885

Description

HARVEY Tool End Mill Carbide AlTiN Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Length Of Cut 0.2340 5.94MM
Neck Length 2.3750 60.33MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Dia 0.1563 3.97MM - 5/32
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
