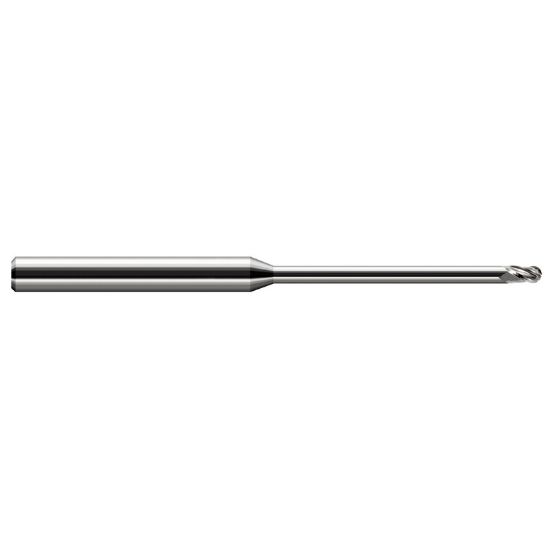

HARVEY Tool 49250 DIA 0.05 LOC 0.0750 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR49250
Delivery date: 3-5 days
$52.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Slot Milling, Side Milling, Copy Milling, Ball Milling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Taper Flute No
Neck Length 0.7500 19.05MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.0750 1.91MM
Inch/Metric Inch
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Ball Nose
Dimension Description 0.050 x 0.125 x 0.075 x 2.500
Cutter Dia 0.0500 1.27MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
