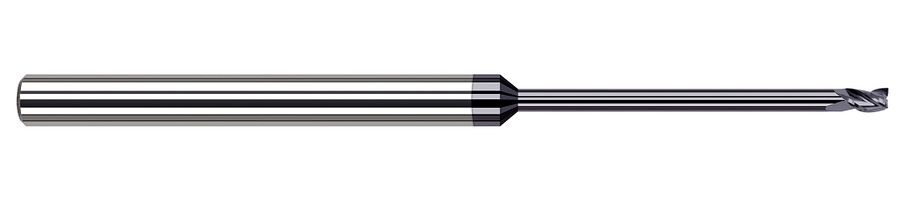

Picture of Harvey Tool 48993-C3 .093 Dia Carbide Stb FL 15x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Harvey Tool 48993-C3 .093 Dia Carbide Stb FL 15x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Square Sharp

Part Number: HAR48993-C3 0.093 x 0.125 x 0.139 x 3.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$72.50
SKU: 1287845

Description

HARVEY Tool End Mill Carbide AlTiN Square Sharp 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0930 2.36MM
Length Of Cut 0.1390 3.53MM
Neck Length 1.4000 35.56MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
