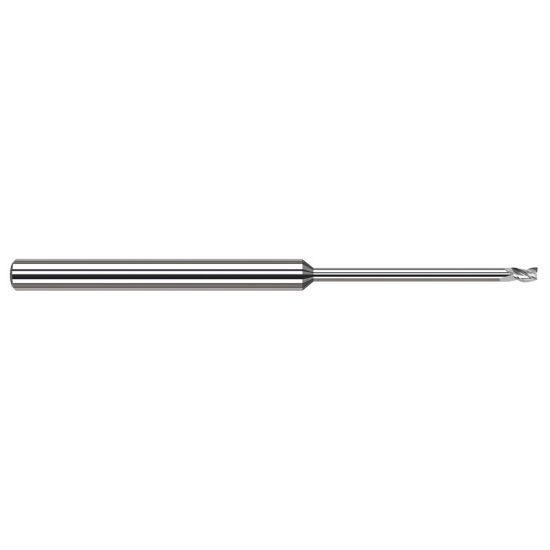

HARVEY Tool 48940 DIA 0.04 LOC 0.0600 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR48940
Delivery date: 3-5 days
$47.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Shoulder Milling, Counterboring, Face Milling, Slot Milling
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Dimension Description 0.040 x 0.125 x 0.060 x 2.500
Cutter Dia 0.0400 1.02MM - #60
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Carbide Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Neck Length 0.6000 15.24MM
Length Of Cut 0.0600 1.52MM
Taper Flute No
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
