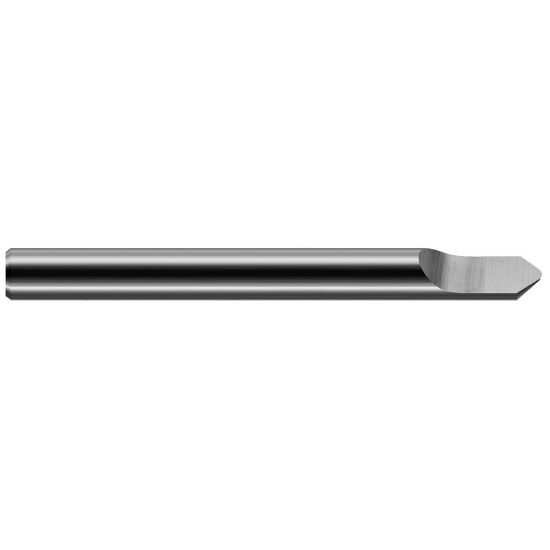

HARVEY Tool 48120 3/16 D x 60 DEG x .005 R ENGREngraving Carbide Uncoated Single End Engraver

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR48120
Delivery date: 3-5 days
$30.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Engraving
Package Size 1
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
End Of Tool Shape Engraver
Length Type Standard
Cutter Style Engraving
Taper Flute No
Chamfer Angle 60.0°
Flutes/Inserts 2
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Single/Double End Single End
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
