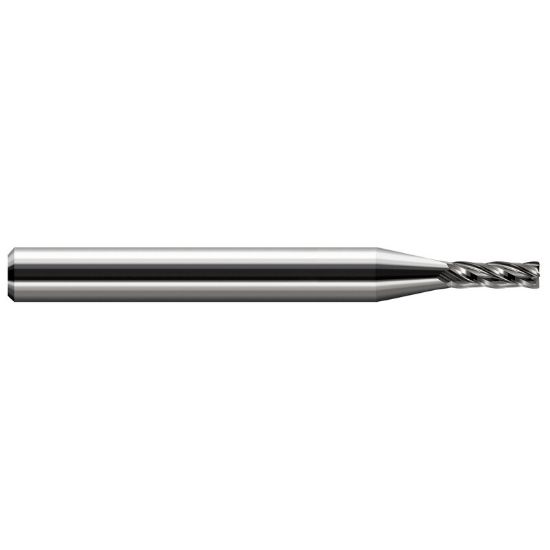

HARVEY Tool 47231 .031 D x .003 R CRAD EM, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0030 0.08MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR47231
Delivery date: 3-5 days
$40.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 4
Length Type Standard
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Overall Len 1.5000 38.10MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.031 x 0.125 x 0.093 x 1.500
Single/Double End Single End
End Of Tool Shape Corner Radius
Taper Flute No
Cutter Dia 0.0310 0.79MM - #68
Length Of Cut 0.0930 2.36MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0030 0.08MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
