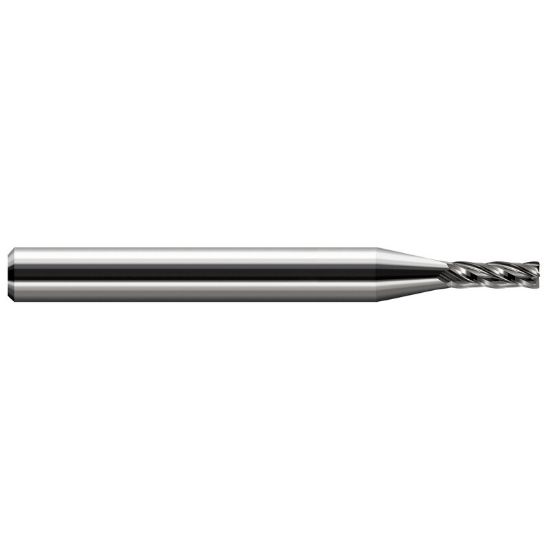

HARVEY Tool 47225 .025 D x .003 R CRAD EM, 4 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0030 0.08MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR47225
Delivery date: 3-5 days
$43.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0030 0.08MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.0750 1.91MM
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.0250 0.64MM - #72
Flutes/Inserts 4
Length Type Standard
Single/Double End Single End
Dimension Description 0.025 x 0.125 x 0.075 x 1.500
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Taper Flute No
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
