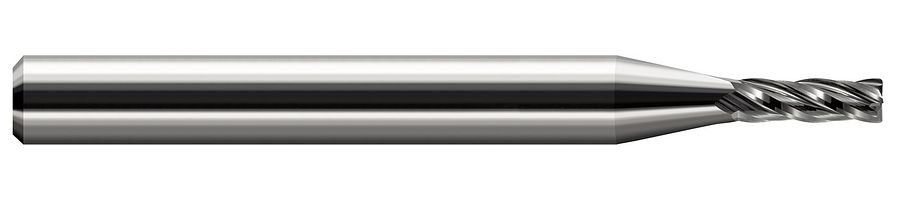

Picture of Harvey Tool 47225 .025 D x .003 R CRad EM, 4 FL End Mill Standard Helix Carbide Uncoated Single End Corner Radius0.0030 0.08mm

Harvey Tool 47225 .025 D x .003 R CRad EM, 4 FL End Mill Standard Helix Carbide Uncoated Single End Corner Radius0.0030 0.08mm

Part Number: HAR47225 0.025 x 0.125 x 0.075 x 1.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$60.30
SKU: 1283361

Description

HARVEY Tool End Mill Carbide Uncoated Corner Radius 0.0030 0.08MM 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Length Of Cut 0.0750 1.91MM
Flutes/Inserts 4
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0250 0.64MM - #72
Geometry & Angles
Corner Radius 0.0030 0.08MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
