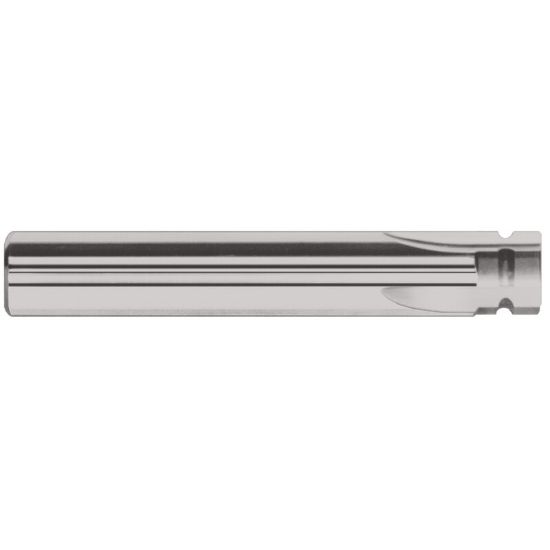

HARVEY Tool 45920 .020 R Carbide CONCAVE EM End Mill Carbide Uncoated Single End Concave0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR45920
Delivery date: 3-5 days
$63.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Form Milling, Corner RoundIng
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
End Of Tool Shape Concave
Length Type Standard
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cutter Style Concave
Dimension Description 0.250 x 0.250 x 0.281 x 2.500
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Taper Flute No
Length Of Cut 0.2813 7.15MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
