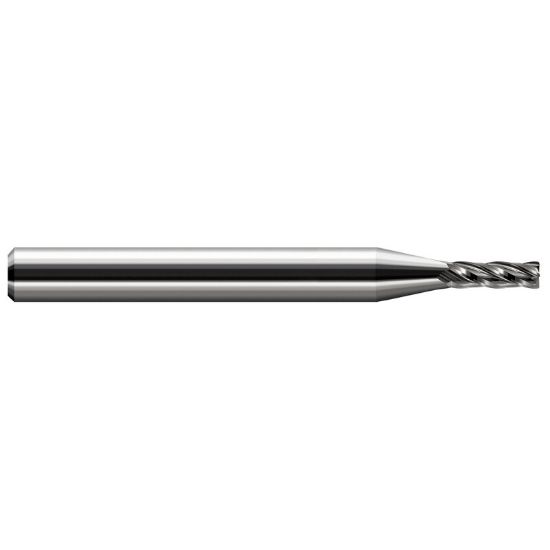

HARVEY Tool 44762 .062 D x .005 R CRAD EM, 2 FL End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR44762
Delivery date: 3-5 days
$25.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.0620 1.57MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Taper Flute No
Corner Radius 0.0050 0.13MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
