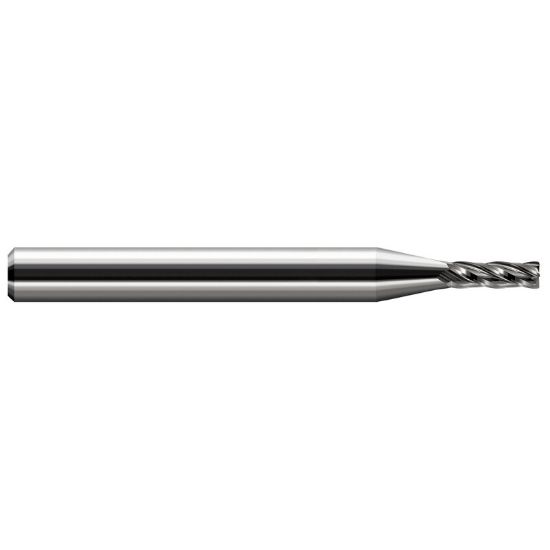

HARVEY Tool 44720 DIA 0.02 LOC 0.0600 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR44720
Delivery date: 3-5 days
$47.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Overall Len 1.5000 38.10MM
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.0200 0.51MM - #76
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Corner Radius 0.0050 0.13MM
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Flutes/Inserts 2
Length Of Cut 0.0600 1.52MM
Taper Flute No
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.020 x 0.125 x 0.060 x 1.500
Tool Material Carbide
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
