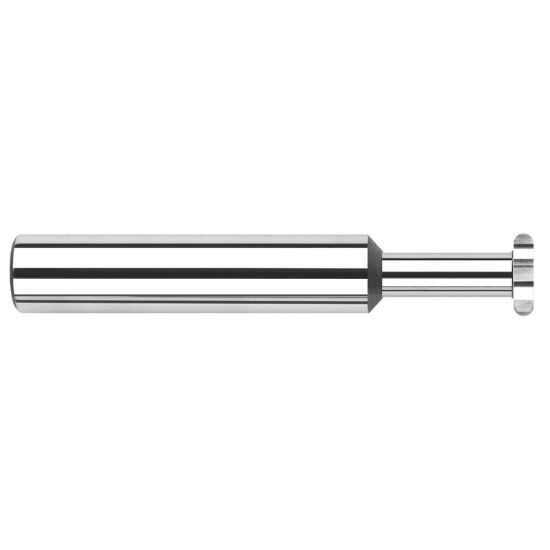

HARVEY Tool 43339 .0394 R x 3/8 D Full RAD Keyseat Carbide Uncoated Single End Key Seat0.0393 1.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR43339
Delivery date: 3-5 days
$118.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Key Seat Cutting
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Corner Radius 0.0393 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
End Of Tool Shape Key Seat
Cutter Style Key Seat Full Radius
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Single/Double End Single End
Length Type Standard
Cutting Width 0.0394 1.00MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Taper Flute No
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
