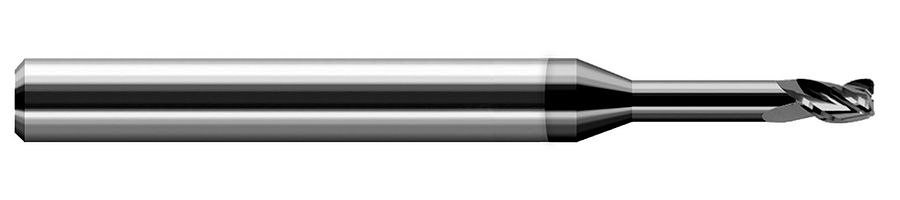

Picture of Harvey Tool 42812-C4 .187 D x .015 R STB FL 5x RCH EM, DMND End Mill Standard Helix Carbide Diamond Single End Corner Radius0.0150 0.38mm

Harvey Tool 42812-C4 .187 D x .015 R STB FL 5x RCH EM, DMND End Mill Standard Helix Carbide Diamond Single End Corner Radius0.0150 0.38mm

Part Number: HAR42812-C4
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.30
SKU: 1287332

Description

HARVEY Tool End Mill Carbide Diamond Corner Radius 0.0150 0.38MM 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Dia 0.1870 4.75MM
Geometry & Angles
Corner Radius 0.0150 0.38MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating Diamond
Tool Material Carbide
