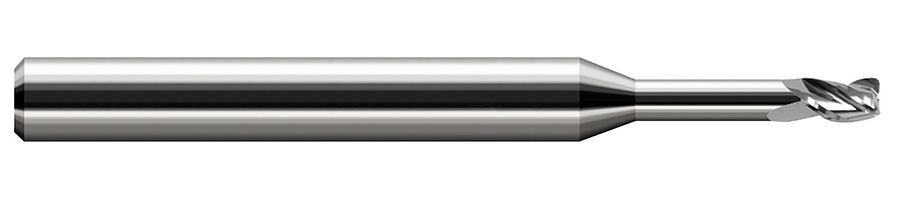

Picture of Harvey Tool 42812 .187 Dia x .015 R STB FL 5x RCH EM End Mill Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm

Harvey Tool 42812 .187 Dia x .015 R STB FL 5x RCH EM End Mill Standard Helix Carbide Uncoated Single End Corner Radius0.0150 0.38mm

Part Number: HAR42812
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$68.20
SKU: 1283034

Description

HARVEY Tool End Mill Carbide Uncoated Corner Radius 0.0150 0.38MM 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Dia 0.1870 4.75MM
Geometry & Angles
Corner Radius 0.0150 0.38MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
