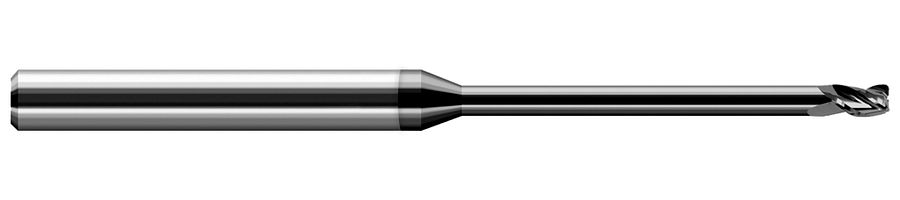

Picture of Harvey Tool 41978-C4 .078 D x .010 R STB FL 12x RCH EM, DMND End Mill Standard Flute Standard Helix Carbide Diamond Single End Corner Radius0.0100 0.25mm

Harvey Tool 41978-C4 .078 D x .010 R STB FL 12x RCH EM, DMND End Mill Standard Flute Standard Helix Carbide Diamond Single End Corner Radius0.0100 0.25mm

Part Number: HAR41978-C4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1287300
Vendor: Sussex Tool and Supply
$63.10
HARVEY TOOL Standard Helix End Mill Carbide Diamond Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End HARVEY Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating Diamond
Mach Side Connection Size 0.1250
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0780 1.98MM
Length Type Standard / With Neck
Performance Rating General Performance
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Inch
Taper/Straight Flute Straight Flute
