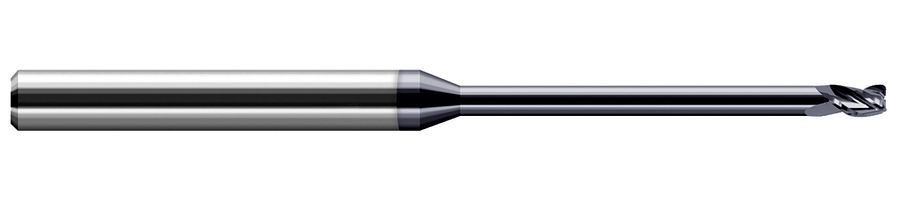

Picture of Harvey Tool 41962-C3 .062 D x .010 R STB FL 12x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm

Harvey Tool 41962-C3 .062 D x .010 R STB FL 12x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm

Part Number: HAR41962-C3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$75.50
SKU: 1287297

Description

HARVEY Tool End Mill Carbide AlTiN Corner Radius 0.0100 0.25MM 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0620 1.57MM
Geometry & Angles
Corner Radius 0.0100 0.25MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
