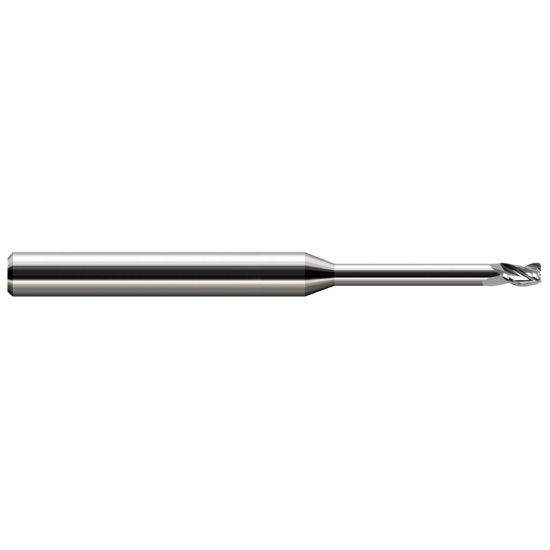

HARVEY Tool 41810 .156 DIA x .010 R STB FL 8x RCH EM End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR41810
Delivery date: 3-5 days
$50.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.1563 3.97MM - 5/32
Length Type Standard
Corner Radius 0.0100 0.25MM
Taper Flute No
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
