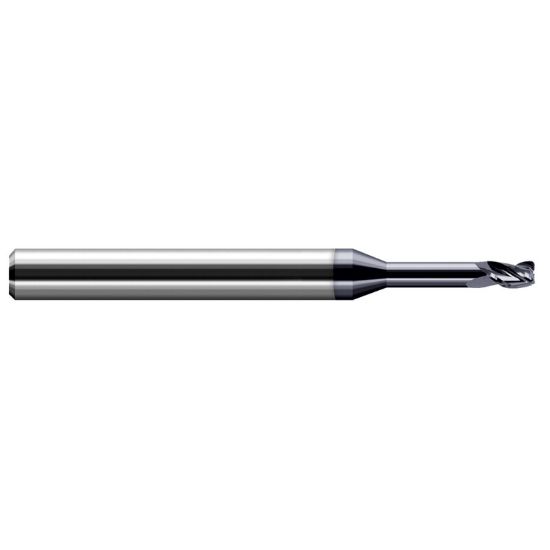

HARVEY Tool 41550-C3 .050 DIA x .010 R STB FL 5x RCH, AlTiN End Mill Standard Flute Standard Helix Carbide Single End Corner Radius 0.0100 0.25MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR41550-C3
Delivery date: 3-5 days
$50.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling, Slot Milling
Made In USA Yes
Package Size 1
Shipping State Massachusetts
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.0500 1.27MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Type Standard / With Neck
Corner Radius 0.0100 0.25MM
Taper Flute No
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
