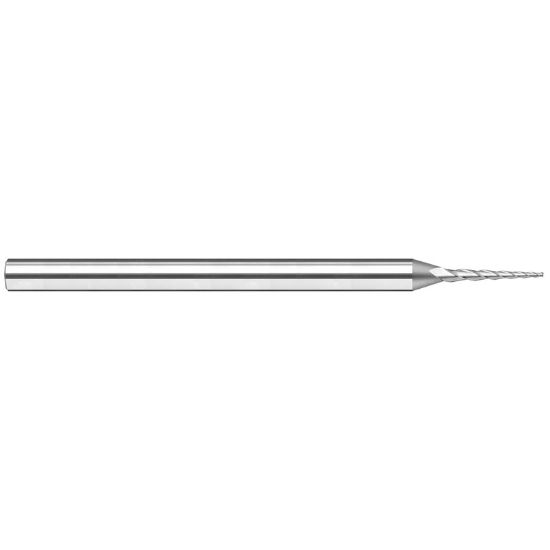

HARVEY Tool 41190 .090 D x 15 DEG Carbide TaperED EM End Mill Taper Flute Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR41190
Delivery date: 3-5 days
$140.70

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Flutes/Inserts 3
Taper Flute Yes
Length Type Standard
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Style Taper Flute Finisher
Taper Angle 15.0°
Single/Double End Single End
Cutter Dia 0.0900 2.29MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
