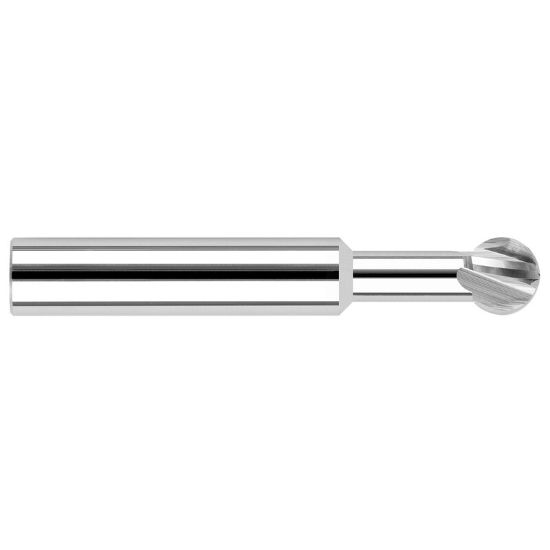

HARVEY Tool 39731 DIA 1/32 LOC 0.0270 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose 270°

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR39731
Delivery date: 3-5 days
$64.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Profile Milling, Under Cut Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Dimension Description 0.031 x 0.125 x 0.027 x 1.500
Cutter Dia 0.0312 0.79MM - 1/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius Ball 270°
Single/Double End Single End
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.0270 0.69MM
Length Type Standard / With Neck
Cutter Style Carbide Spherical Ball Finisher
Taper Flute No
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
