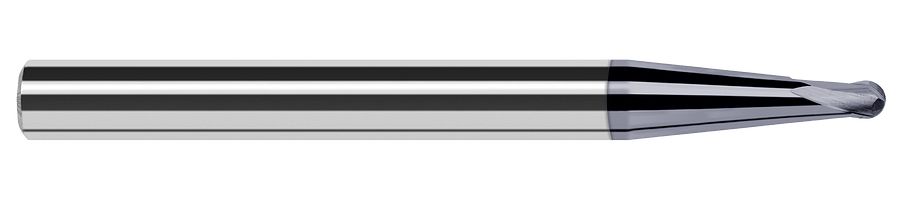

Picture of Harvey Tool 39293-C6 .093 Ball x 5 DEG x 1.686 RCH 2 FL Nano End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 39293-C6 .093 Ball x 5 DEG x 1.686 RCH 2 FL Nano End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR39293-C6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1287176
Vendor: Sussex Tool and Supply
$99.80
HARVEY TOOL Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating ALTIN
Mach Side Connection Size 0.3750
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.0930 2.36MM
Length Type Standard / Taper Neck
Performance Rating General Performance
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
