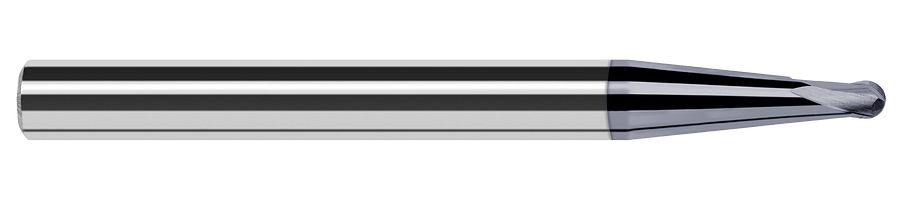

Picture of Harvey Tool 38960-C6 .060 Ball x 5 DEG x 1.134 RCH 2 FL Nano End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 38960-C6 .060 Ball x 5 DEG x 1.134 RCH 2 FL Nano End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR38960-C6
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1287162
Vendor: Sussex Tool and Supply
$78.10

Description

HARVEY TOOL Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End HARVEY Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / Taper Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.0600 1.52MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
