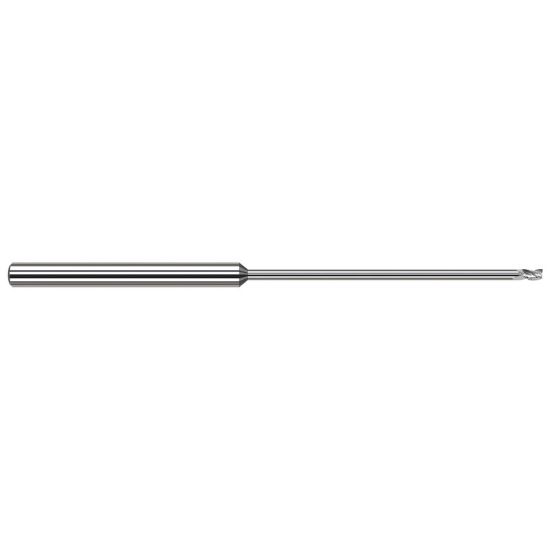

HARVEY Tool 38020 DIA 0.02 LOC 0.0300 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR38020
Delivery date: 3-5 days
$78.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State Massachusetts
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.020 x 0.125 x 0.030 x 2.500
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cutter Dia 0.0200 0.51MM - #76
Neck Length 0.5000 12.70MM
Taper Flute No
Flutes/Inserts 3
Length Of Cut 0.0300 0.76MM
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
