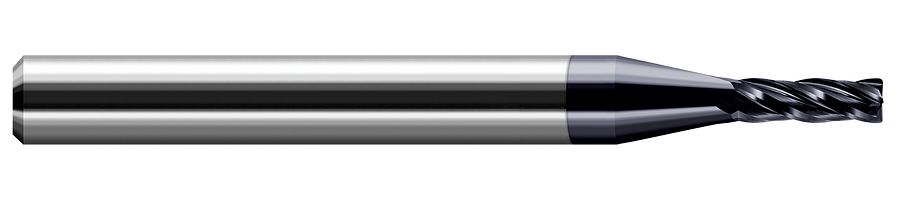

Picture of Harvey Tool 36250-C3 .250 D x .050 R CRad EM, 4 FL, AlTiN End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0500 1.27mm

Harvey Tool 36250-C3 .250 D x .050 R CRad EM, 4 FL, AlTiN End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0500 1.27mm

Part Number: HAR36250-C3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$59.30
SKU: 1287018

Description

HARVEY Tool End Mill Carbide AlTiN Corner Radius 0.0500 1.27MM 4 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 4
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Dia 0.2500 6.35MM - 1/4 - E
Geometry & Angles
Corner Radius 0.0500 1.27MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
