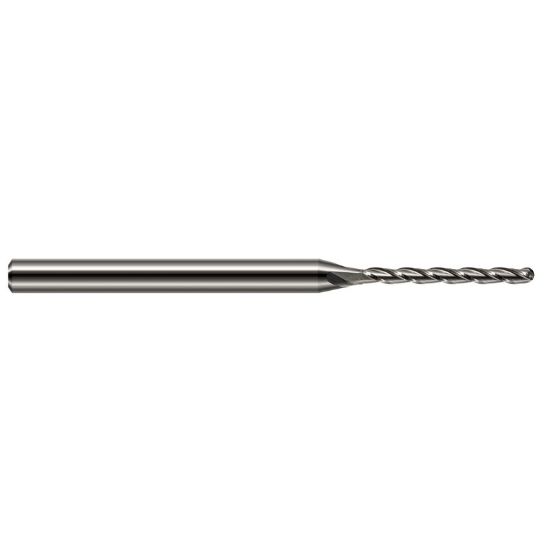

HARVEY Tool 36108 DIA 1/8 LOC 1.8750 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR36108
Delivery date: 3-5 days
$89.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Milling, Profile Milling, Side Milling, Ball Slot Milling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Ball Nose
Dimension Description 0.125 x 0.125 x 1.875 x 3.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Taper Flute No
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
