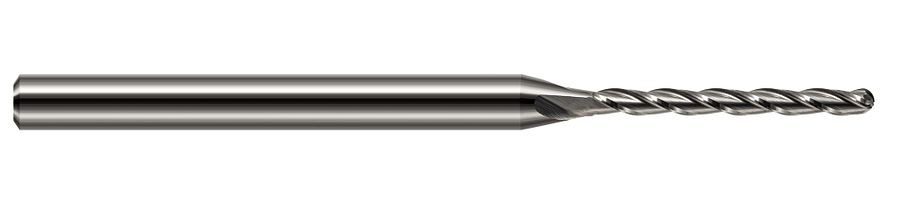

Picture of Harvey Tool 36031 Dia 0.031 LOC 0.4700 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Harvey Tool 36031 Dia 0.031 LOC 0.4700 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall

Part Number: HAR36031 0.031 x 0.125 x 0.470 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1282819
Vendor: Sussex Tool and Supply
$102.00
HARVEY TOOL Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 3 Single End HARVEY Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Mach Side Connection Size 0.1250 3.18MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0310 0.79MM - #68
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.4700 11.94MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
