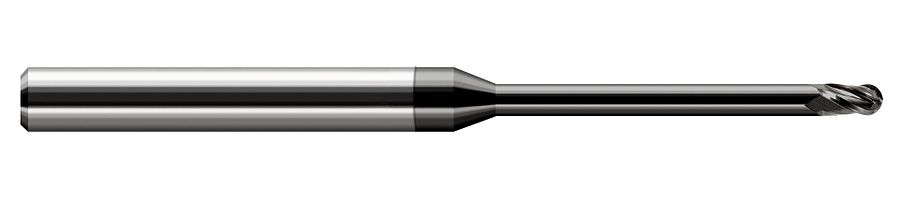

Picture of Harvey Tool 35716-C4 .250 Ball Carbide Stb FL 12x RCH EM, DIAMND End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall

Harvey Tool 35716-C4 .250 Ball Carbide Stb FL 12x RCH EM, DIAMND End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall

Part Number: HAR35716-C4 0.250 x 0.250 x 0.375 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: 1286983
Vendor: Sussex Tool and Supply
$91.90
HARVEY TOOL Standard Helix End Mill Carbide Diamond Ball Nose Ball Standard Flute Flutes 3 Single End HARVEY Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating Diamond
Mach Side Connection Size 0.2500 6.35MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Neck Length 3.0000 76.20MM
Taper/Straight Flute Straight Flute
