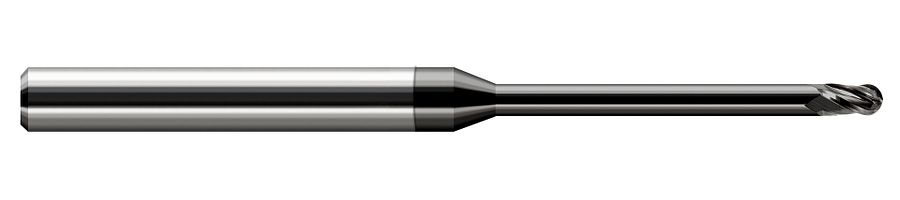

Picture of Harvey Tool 35647-C4 .047 Ball Carbide Stb FL 12x RCH EM, Diamond End Mill Standard Helix Carbide Diamond Single End Ball NoseBall

Harvey Tool 35647-C4 .047 Ball Carbide Stb FL 12x RCH EM, Diamond End Mill Standard Helix Carbide Diamond Single End Ball NoseBall

Part Number: HAR35647-C4 0.047 x 0.125 x 0.070 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$85.20
SKU: 1286963

Description

HARVEY Tool End Mill Carbide Diamond Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.0470 1.19MM
Length Of Cut 0.0700 1.78MM
Neck Length 0.5700 14.48MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Diamond
