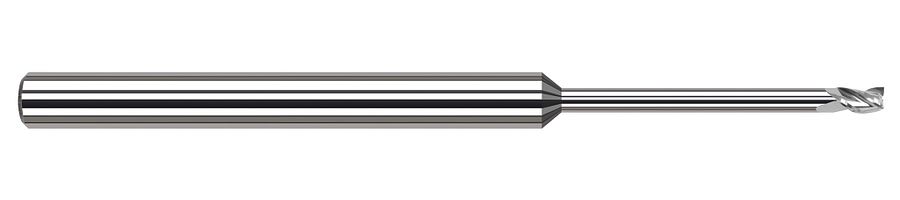

Picture of Harvey Tool 35509 Dia 0.14 LOC 0.2200 OAL 4.00 End Mill Standard Helix Carbide Uncoated Single End Square Sharp

Harvey Tool 35509 Dia 0.14 LOC 0.2200 OAL 4.00 End Mill Standard Helix Carbide Uncoated Single End Square Sharp

Part Number: HAR35509 0.140 x 0.188 x 0.220 x 4.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$72.70
SKU: 1282788

Description

HARVEY Tool End Mill Carbide Uncoated Square Sharp 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Length Of Cut 0.2200 5.59MM
Neck Length 1.6800 42.67MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Dia 0.1400 3.56MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
