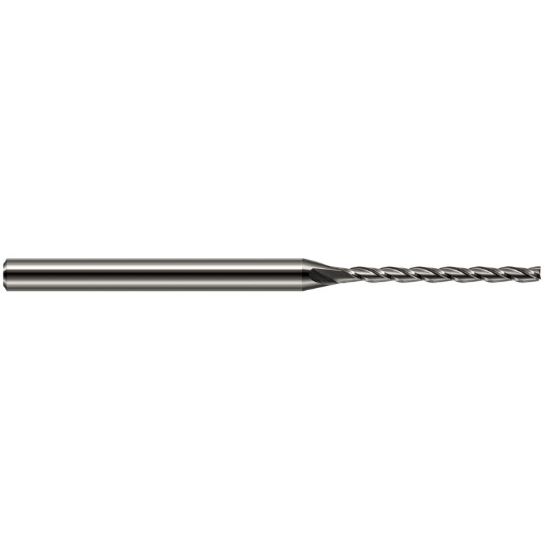

HARVEY Tool 34980 DIA 0.08 LOC 0.9600 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR34980
Delivery date: 3-5 days
$54.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Square
Dimension Description 0.080 x 0.125 x 0.960 x 2.500
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cutter Dia 0.0800 2.03MM
Overall Len 2.5000 63.50MM
Taper Flute No
Length Type Standard
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Length Of Cut 0.9600 24.38MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
