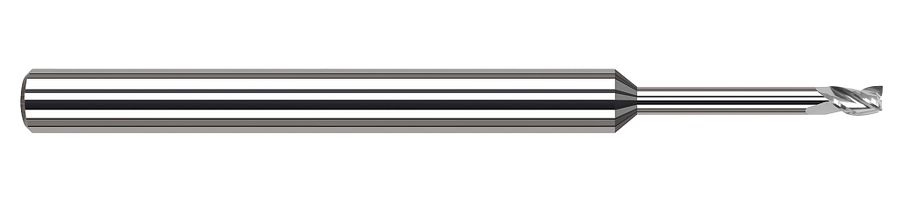

Picture of Harvey Tool 34631 Dia 0.031 LOC 0.0460 OAL 2.50 End Mill Standard Helix Carbide Uncoated Single End Square Sharp

Harvey Tool 34631 Dia 0.031 LOC 0.0460 OAL 2.50 End Mill Standard Helix Carbide Uncoated Single End Square Sharp

Part Number: HAR34631 0.031 x 0.125 x 0.046 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$54.50
SKU: 1282675

Description

HARVEY Tool End Mill Carbide Uncoated Square Sharp 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Length Of Cut 0.0460 1.17MM
Neck Length 0.2500 6.35MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0310 0.79MM - #68
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
