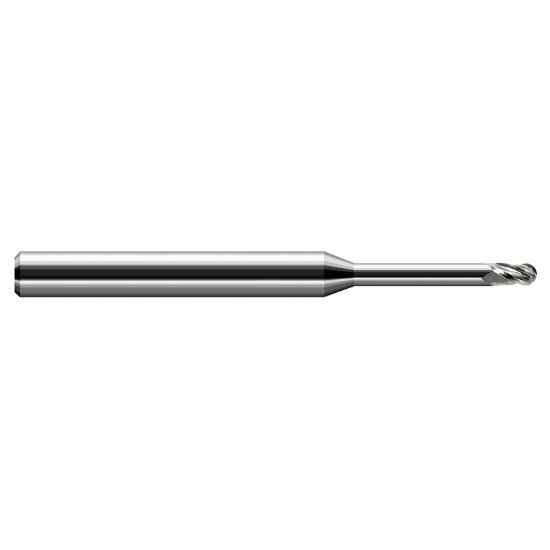

HARVEY Tool 34314 DIA 7/32 LOC 0.3300 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR34314
Delivery date: 3-5 days
$58.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.2500 6.35MM
Overall Len 4.0000 101.60MM
Taper Flute No
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Neck Length 1.7500 44.45MM
Length Type Standard / With Neck
Dimension Description 0.219 x 0.250 x 0.330 x 4.000
Length Of Cut 0.3300 8.38MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Ball Finisher
Cutter Dia 0.2188 5.56MM - 7/32
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
