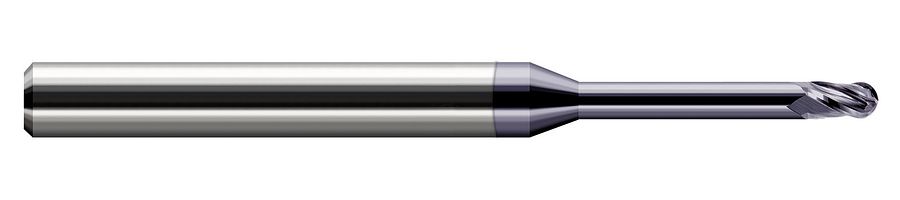

Picture of Harvey Tool 34224-C3 .024 Ball Carbide Stb FL 8x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 34224-C3 .024 Ball Carbide Stb FL 8x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR34224-C3 0.024 x 0.125 x 0.036 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$89.40
SKU: 1286675

Description

HARVEY Tool End Mill Carbide AlTiN Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Length Of Cut 0.0360 0.91MM
Neck Length 0.1920 4.88MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0236 0.60MM
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
