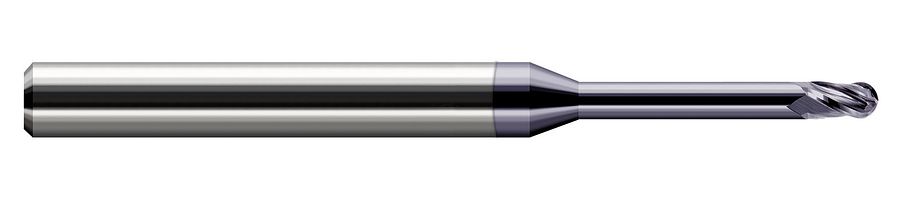

Picture of Harvey Tool 34221-C3 .021 Ball Carbide Stb FL 8x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Harvey Tool 34221-C3 .021 Ball Carbide Stb FL 8x RCH EM, AlTiN End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall

Part Number: HAR34221-C3 0.021 x 0.125 x 0.031 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.30
SKU: 1286672

Description

HARVEY Tool End Mill Carbide AlTiN Ball Nose 3 Flute Single End
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Taper/Straight Flute Straight Flute
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Length Of Cut 0.0310 0.79MM
Neck Length 0.1680 4.27MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Tool Dia 0.0210 0.53MM - #75
Performance & Capacity
Performance Rating General Performance
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating ALTIN
Tool Material Carbide
