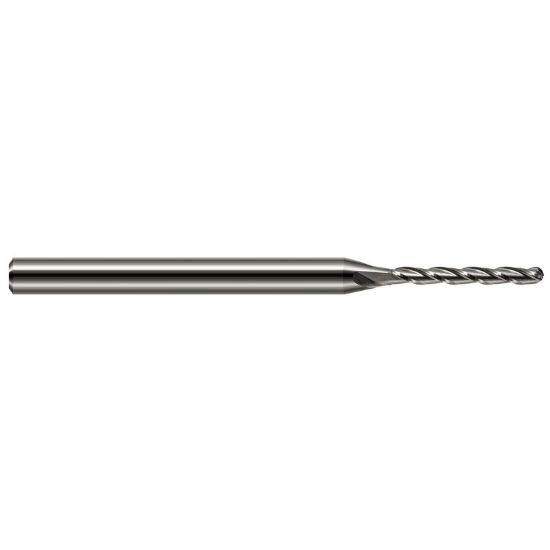

HARVEY Tool 34040 DIA 0.04 LOC 0.3250 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR34040
Delivery date: 3-5 days
$69.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Profile Milling, Ball Milling, Ball Slot Milling, Side Milling, Copy Milling
Shipping State Massachusetts
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.0400 1.02MM - #60
Overall Len 2.5000 63.50MM
Length Of Cut 0.3250 8.26MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
End Of Tool Shape Ball Nose
Taper Flute No
Flutes/Inserts 3
Dimension Description 0.040 x 0.125 x 0.325 x 2.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
