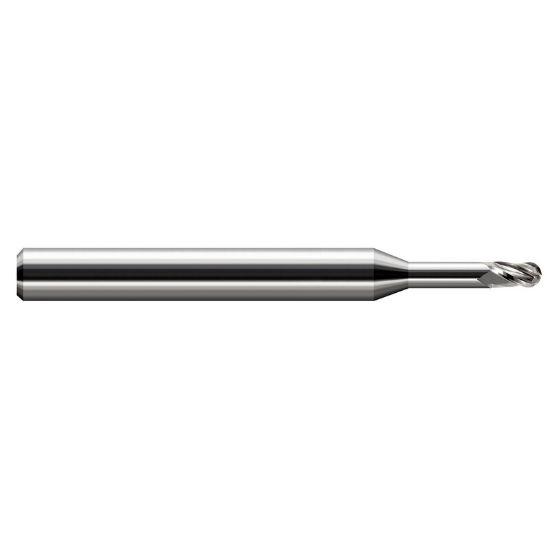

HARVEY Tool 33524 DIA 3/8 LOC 0.5700 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HARVEY TOOL
SKU: HAR33524
Delivery date: 3-5 days
$95.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Massachusetts
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 0.570 x 4.000
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Ball Finisher
Neck Length 2.0000 50.80MM
Overall Len 4.0000 101.60MM
Length Of Cut 0.5700 14.48MM
Taper Flute No
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
